Slag Hydraulic high pressure briquette machine is widely used in metallurgical, chemical, coal and refractories industries, etc. which is suitable for wet powder briquetting by use of adding an appropriate amount of water and other adhesives. It applies to many raw materials, such as light burning magnesium, iron oxide skin, manganese alloy, sludge, gypsum, carbon, silicon carbide, copper powder, iron powder and various refractory, etc..
This series machine adopts a unique hydraulic system, so that improve the briquetting rate and strength.
Raw materials:
1.Charcoal powder:coconut shell charcoal powder,bamboo charcoal powder etc.
2.Metal powder: Iron powder, magnesium powder, copper powder, chromium ore, lead, zinc scrap, bauxite, nonferrous metal powder, silicon manganese alloy powder etc.
3.Mineral powder: aluminum powder, toner, gypsum, sludge, desulphurization gypsum powder etc.
Baller Shepad\Roller display

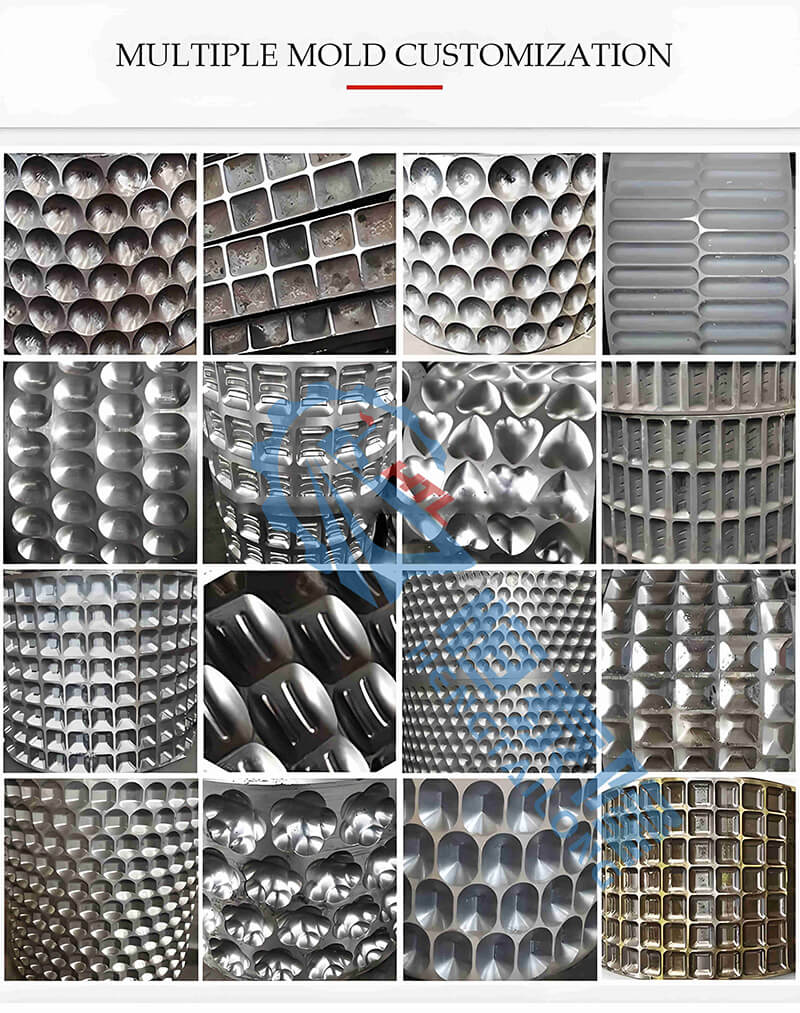

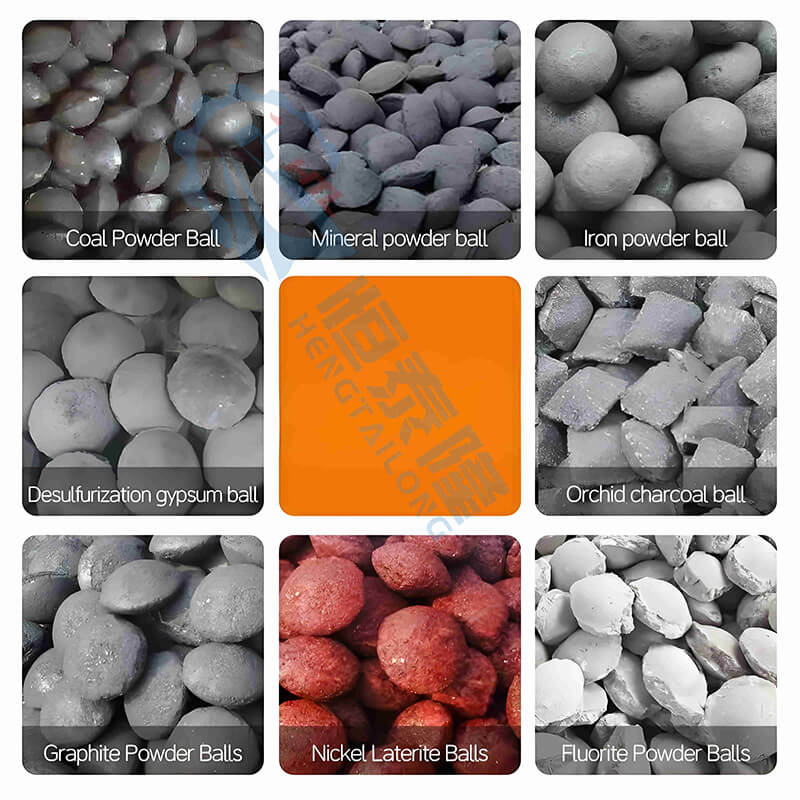

The final products can be shaped by special moulds into different shapes such as egg, pillow, finger, heart, oval, round, sphere, column and square. We can also customize shapes for customers.
|
Model |
Roller Dia. (mm) |
Roller Width (mm) |
Motor Power (kw) |
Shaft Speed (r/min) |
Reducer Model |
Capacity (t/h) |
Roller Material |
|
YYQ-476 |
476 |
210 |
22/1.5 |
15 |
ZQ500 |
3-6 |
65Mn |
|
YYQ -476 |
476 |
260 |
30/1.5 |
15 |
ZQ650 |
4-8 |
9Cr2M0 |
|
YYQ -500 |
500 |
300 |
30/1.5 |
15 |
ZQ650 |
5-9 |
65Mn/9Cr2M0 |
|
YYQ -650 |
650 |
336 |
45/1.5 |
15 |
ZQ750 |
8-15 |
65Mn |
|
YYQ -672 |
672 |
275 |
75/1.5 |
13 |
ZQ1000 |
8-15 |
9Cr2Mo |
|
YYQ -750 |
750 |
400 |
55/1.5 |
13 |
ZQ850 |
15-20 |
65Mn/9Cr2Mo |
|
YYQ -850 |
850 |
500 |
75/1.5 |
10 |
ZQ850 |
20-30 |
65Mn/9Cr2M0 |
|
YYQ-1000 |
1000 |
650 |
110/1.5 |
10 |
ZQ1000 |
30-50 |
65Mn/9Cr2M0 |
