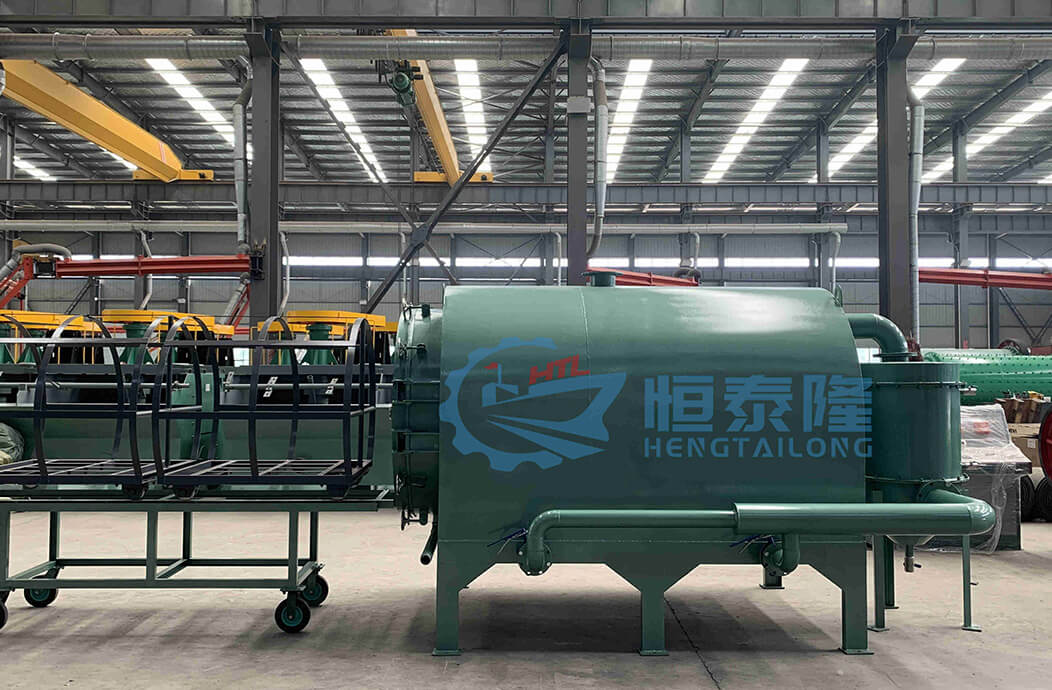

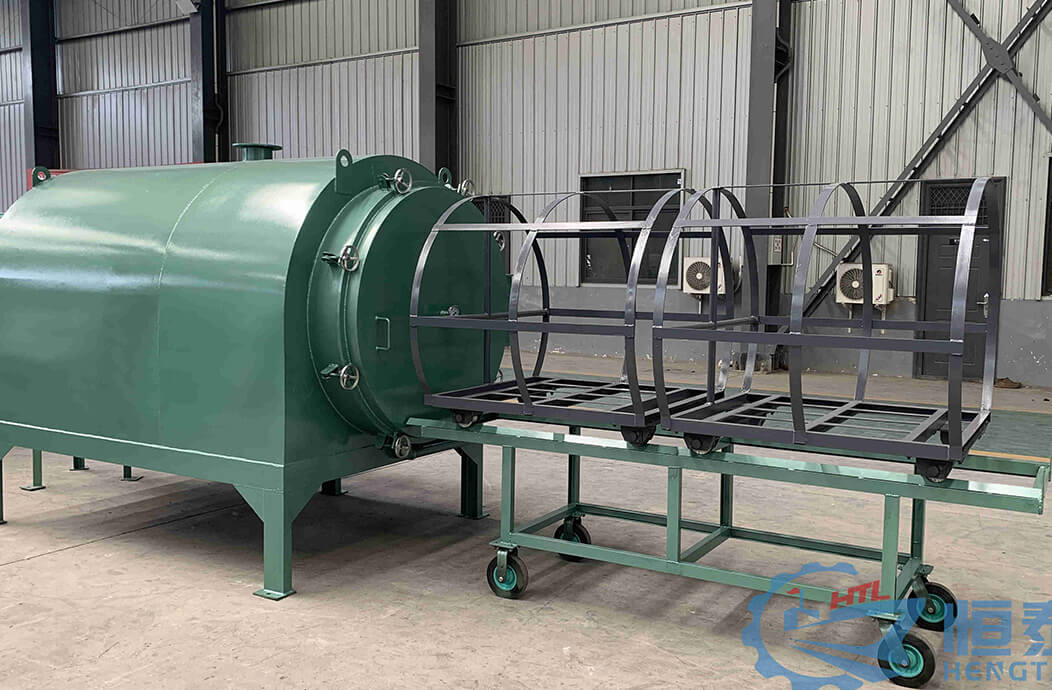

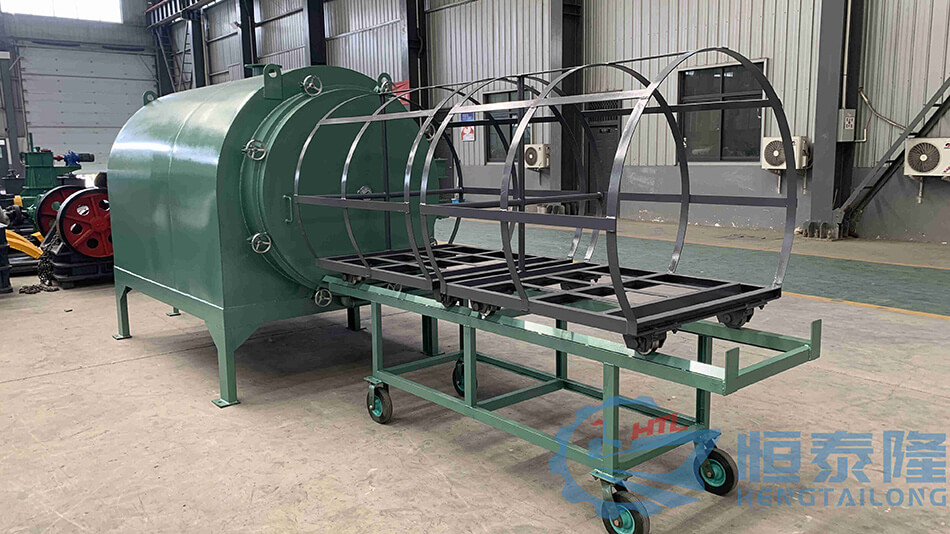

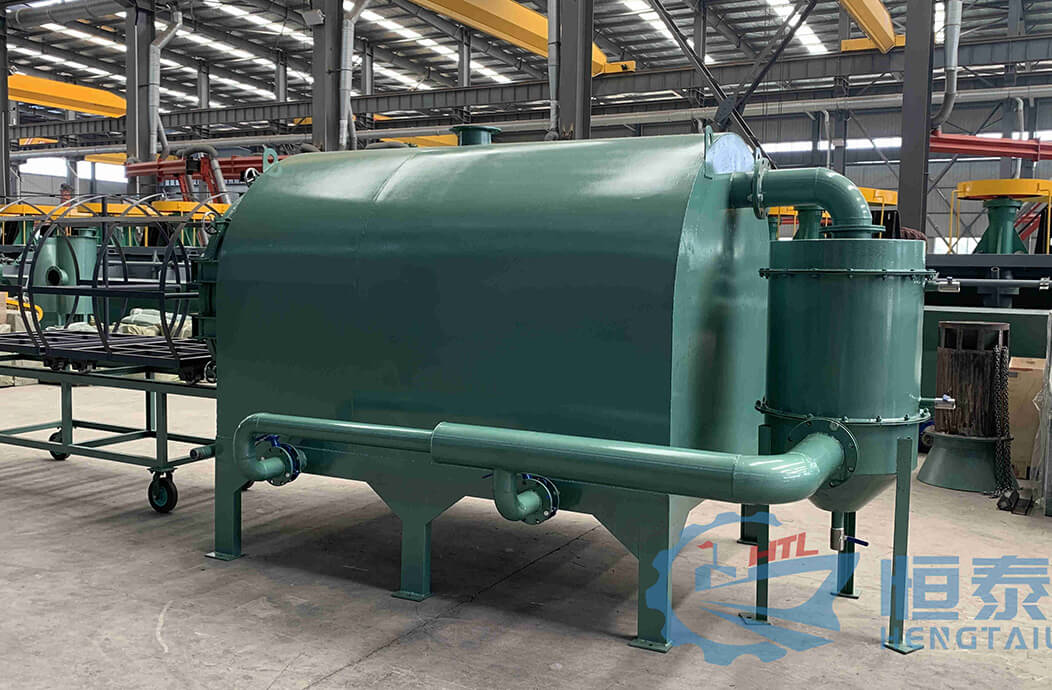

Horizontal carbonization furnace in the original carbonization furnace on the basis of the increase of flue gas recovery device, flue gas recovery can reach, to smoke-free dust. Horizontal carbonization furnace has the effect of one machine and two uses, the material can be directly carbonized, also can be made after the first rod carbonization. The carbon yield of raw materials is more than 40%-60%, and the yield of finished products is more than 95%. Save time and labor, one person can operate several carbonization furnaces at the same time.
Horizontal carbonization furnace carbonization time is short, improve work efficiency. And suitable for a variety of materials carbonization process, the combustible gas can be fully utilized, no pollution to the environment, to achieve energy conservation and environmental protection.
It is widely suitable for large range of raw materials.Such as wood log,wood branches,wood chips,sawdust briquette,rice husk /hull, coconut shell, palm kernel shell, olive shell, coffee shell, straws, bagasse etc.After carbonization, the raw material will become final charcoal.
|
Model number |
Inner barrel size (Diameter * Length * thickness/mm) |
Overall dimension (Length * width * height/mm) |
weight (kg) |
Carbonization cycle |
Yield (kg) |
|
HTL |
500*1000*4 |
1200*700*1000 |
130 |
6-8 hours |
≈50 |
|
HTL |
800*1500*6 |
1800*1000*1550 |
360 |
8-10 hours |
≈150 |
|
HTL |
1000*1500*5 |
1800*1200*1750 |
410 |
8-10 hours |
≈250 |
|
HTL |
1200*1500*6 |
1900*1400*2050 |
630 |
8-15 hours |
≈300 |
|
HTL |
1500*1500*8 |
1900*1700*2300 |
1000 |
8-15 hours |
≈500 |
|
HTL |
1500*2000*8 |
2400*1700*2300 |
1300 |
8-15 hours |
≈700 |
|
HTL |
1500*3000*10 |
3100*1700*2300 |
2400 |
18-24 hours |
≈1000 |
|
HTL |
1500*4500*10 |
4800*1800*2400 |
3200 |
18-24 hours |
≈1500 |
|
HTL |
2000*3000*12 |
3300*2300*2600 |
3800 |
18-24 hours |
≈1700 |
|
HTL |
2000*4500*12 |
4800*2300*2600 |
4500 |
24-36 hours |
≈2000 |
|
HTL |
2000*6000*12 |
6300*2300*2700 |
6000 |
24-36 hours |
≈3000 |
|
Note: Customization and adjustment can be made according to user requirements! |
|||||
